Product Description
Feature & benefit:
- Brake kit is specially designed for 993 with rear engine for about a 40/60% weight distribution.

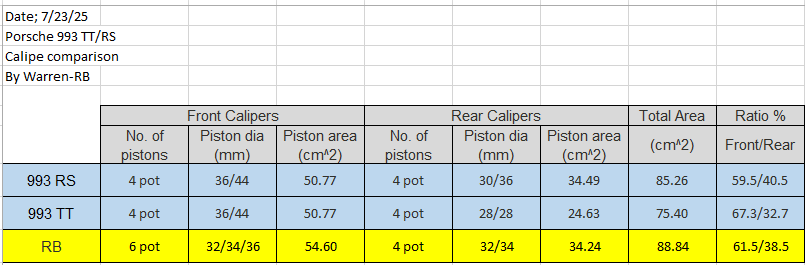

- Front 6 pot / Rear 4 pot truck duty calipers are selected to have a 61.5/38.5 bias ratio.
- CCB brake pads included for performance street driving.

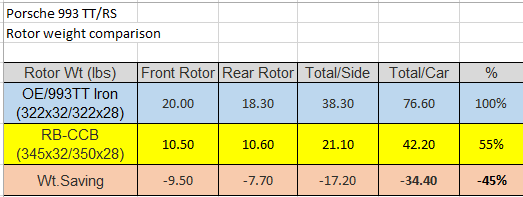

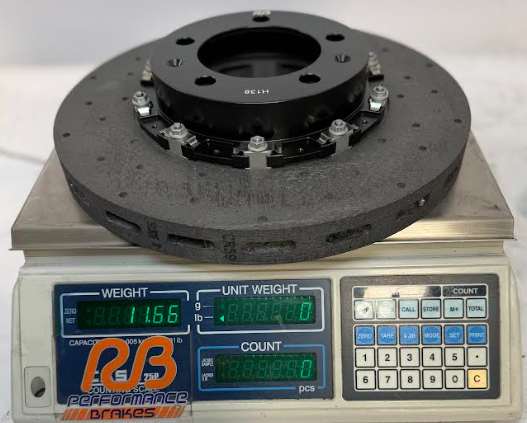

- Save rotor weight by 45% over stock despite oversized bigger rotors.
- Overall system performance improvement.

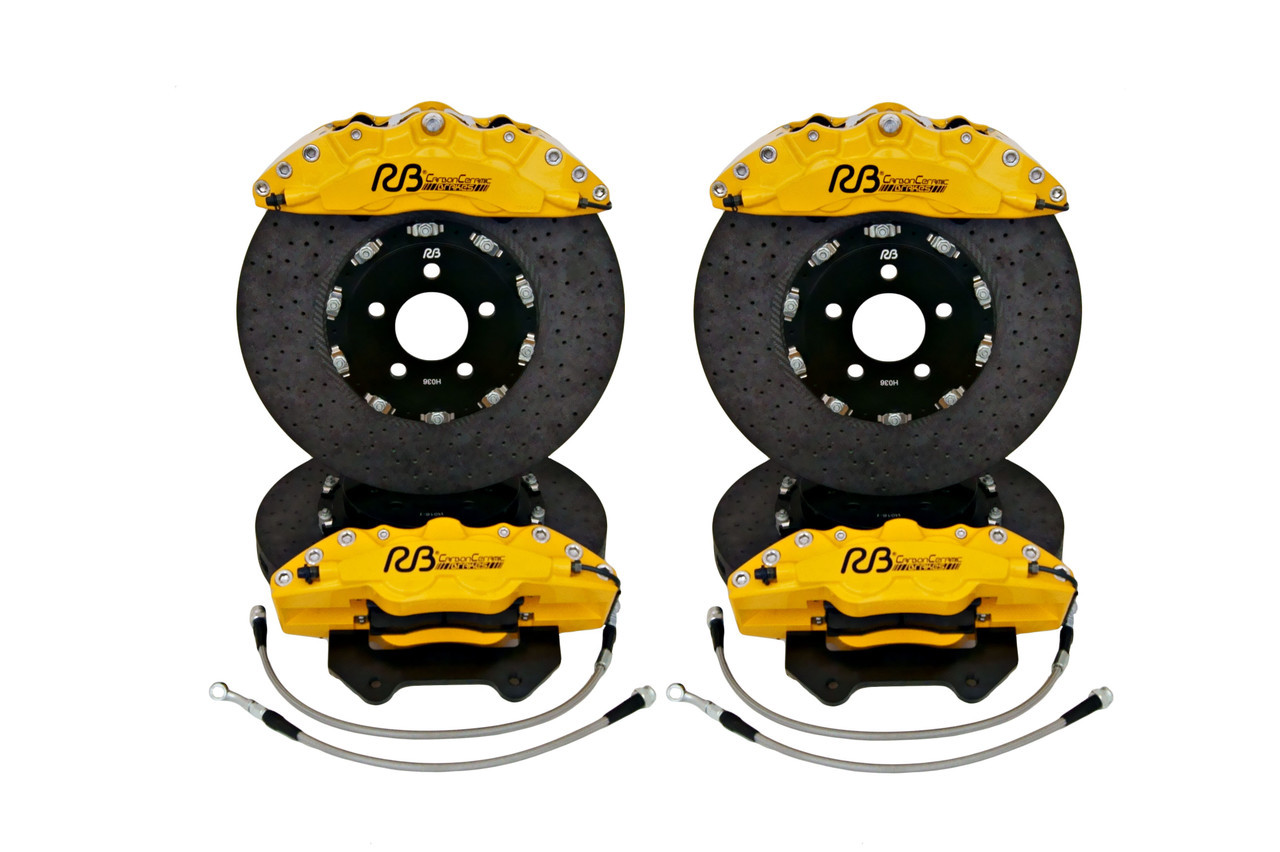

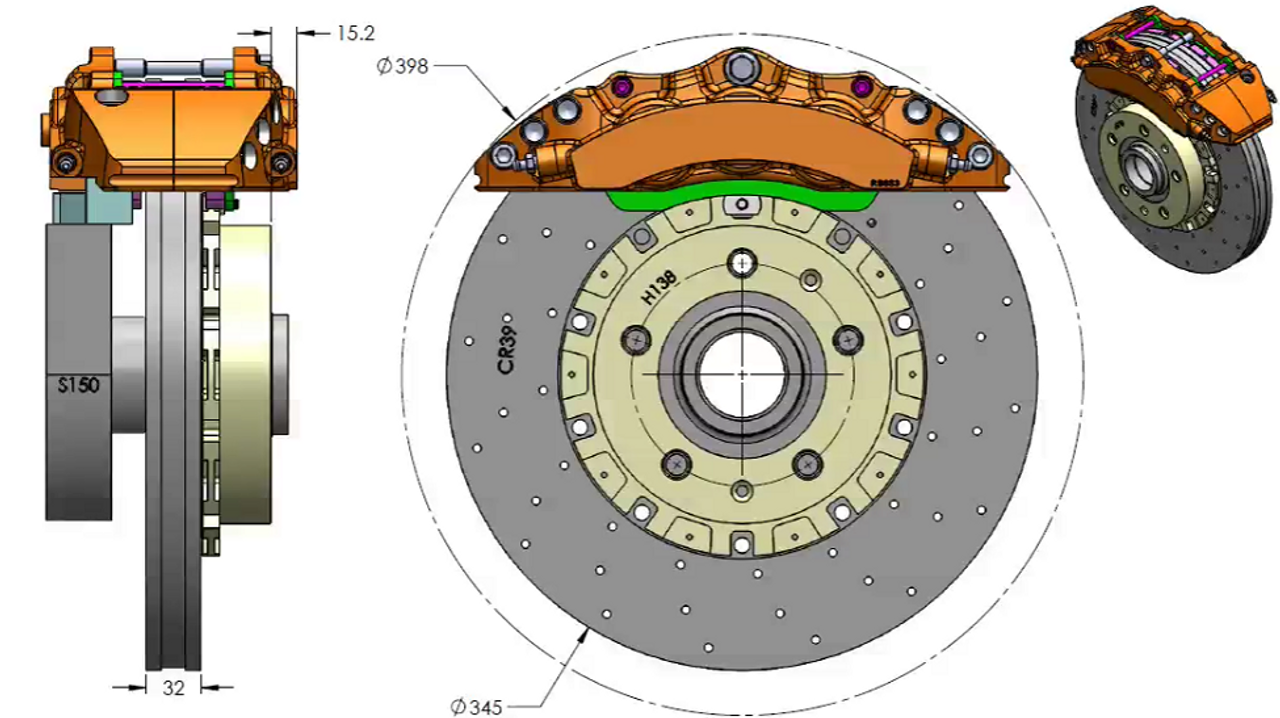

Kit includes:

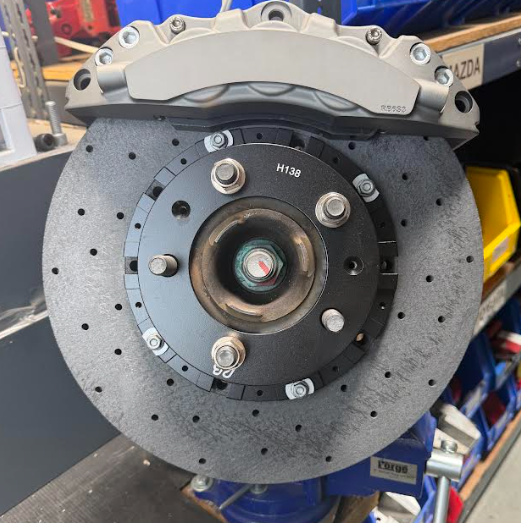

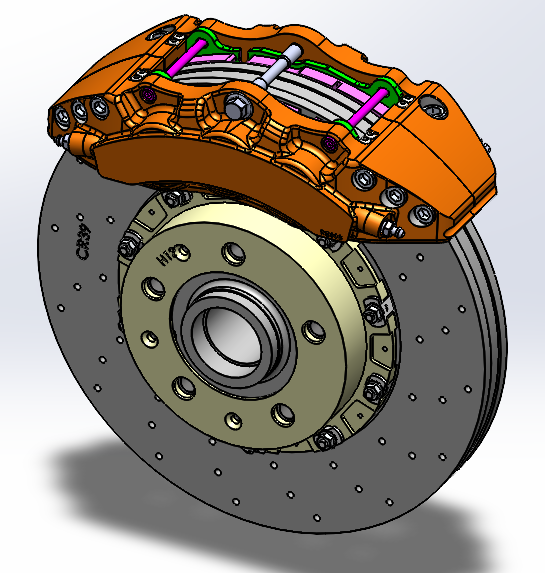

- 2 ea Front RB 6 pot calipers
- 2 ea Front 345x32mm ccb rotors
- 2 ea Front caliper adaptors

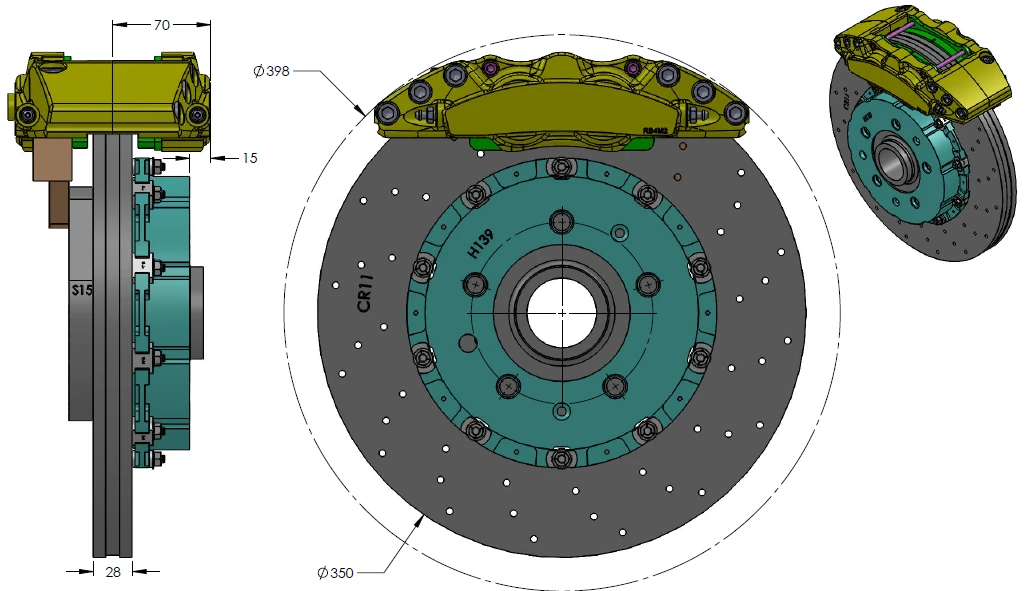

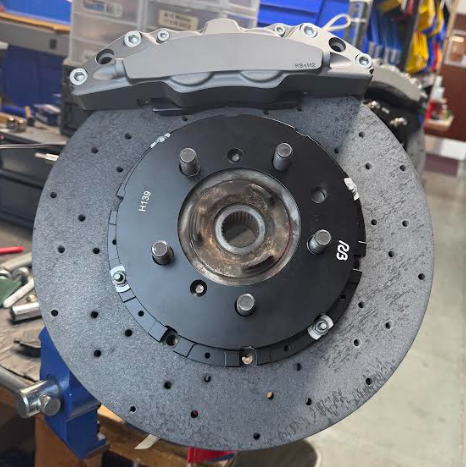

- 2 ea Rear RB 4 pot calipers

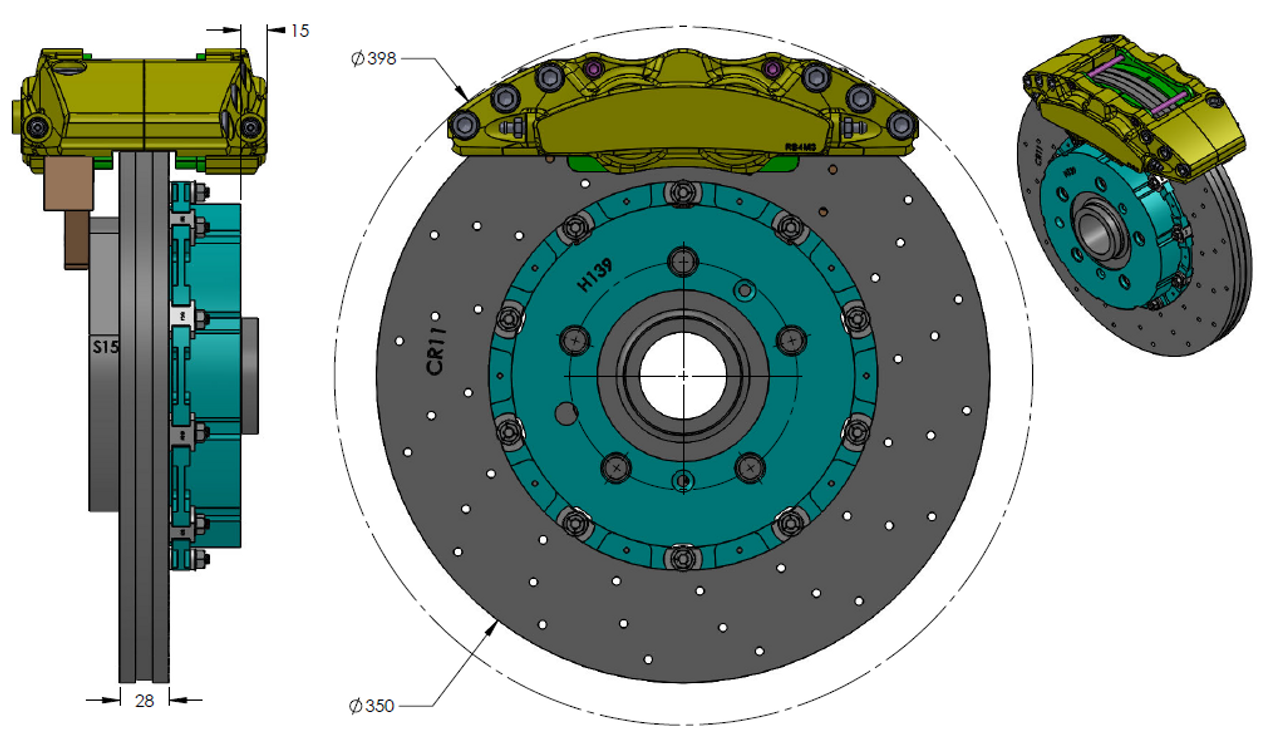

- 2 ea Rear 350x28mm ccb rotors (Rear drum brake 100% compatible)
- 2 ea Rear caliper adaptors
- 1 car set ccb street pads
- 1 car set SS brake lines
Installation note:
This ccb system kit is certified to fit OE 18" wheels (front & rear) w/o requiring any wheel spacers or modifications.

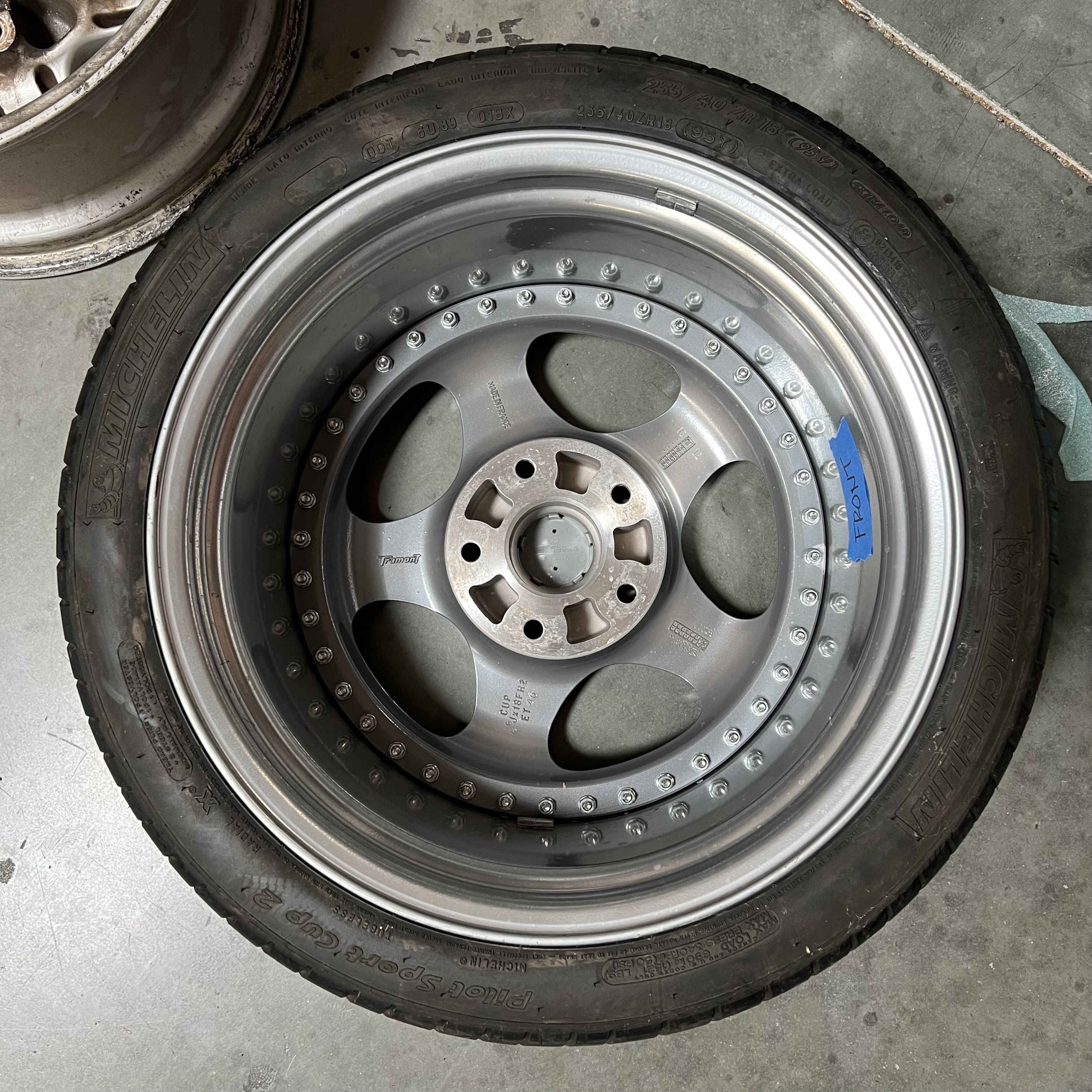

If you have aftermarket wheels (eg. 2 pc construction), A 10-12mm (1/2") wheel spacers may be required in order to clear the inner corner where the nuts are.

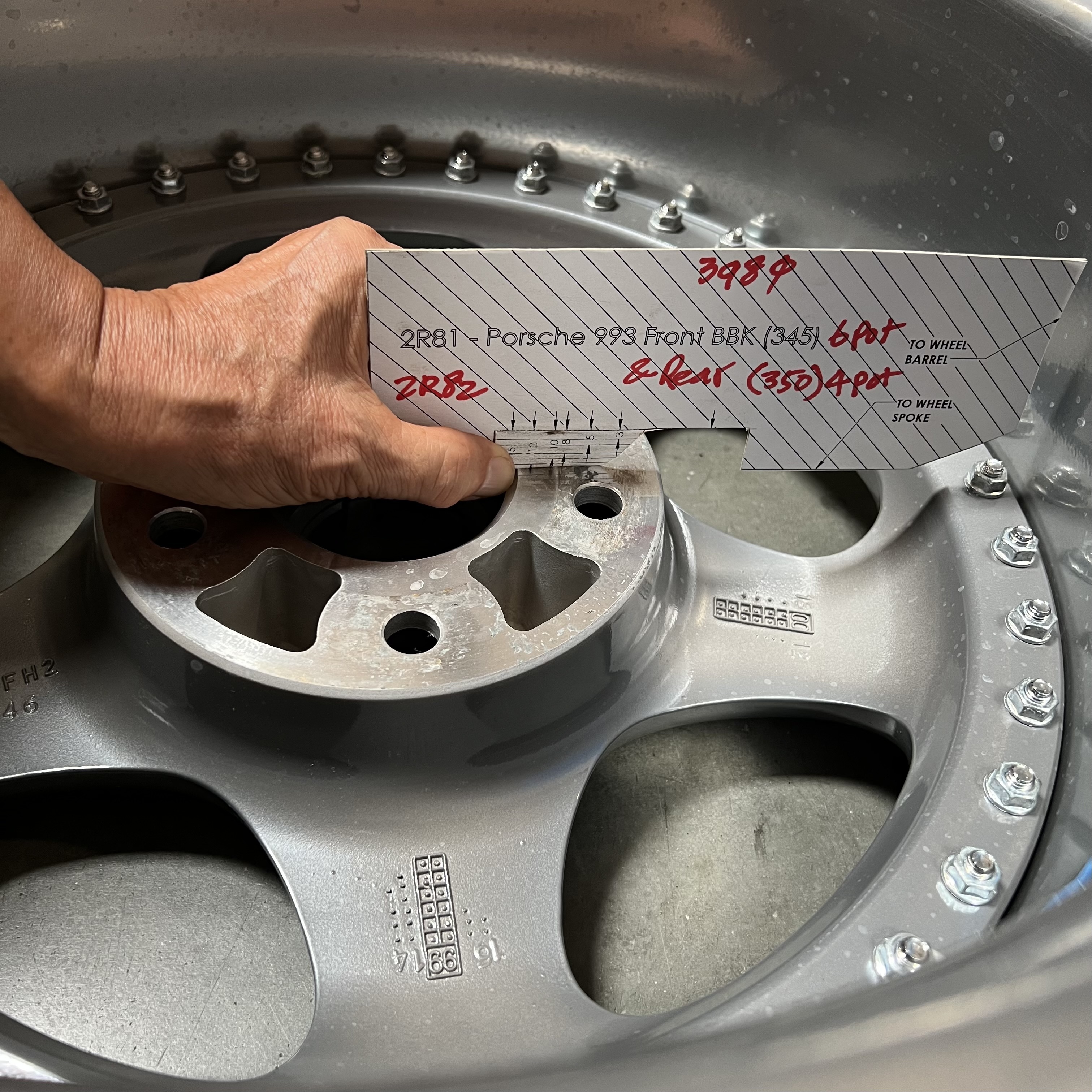

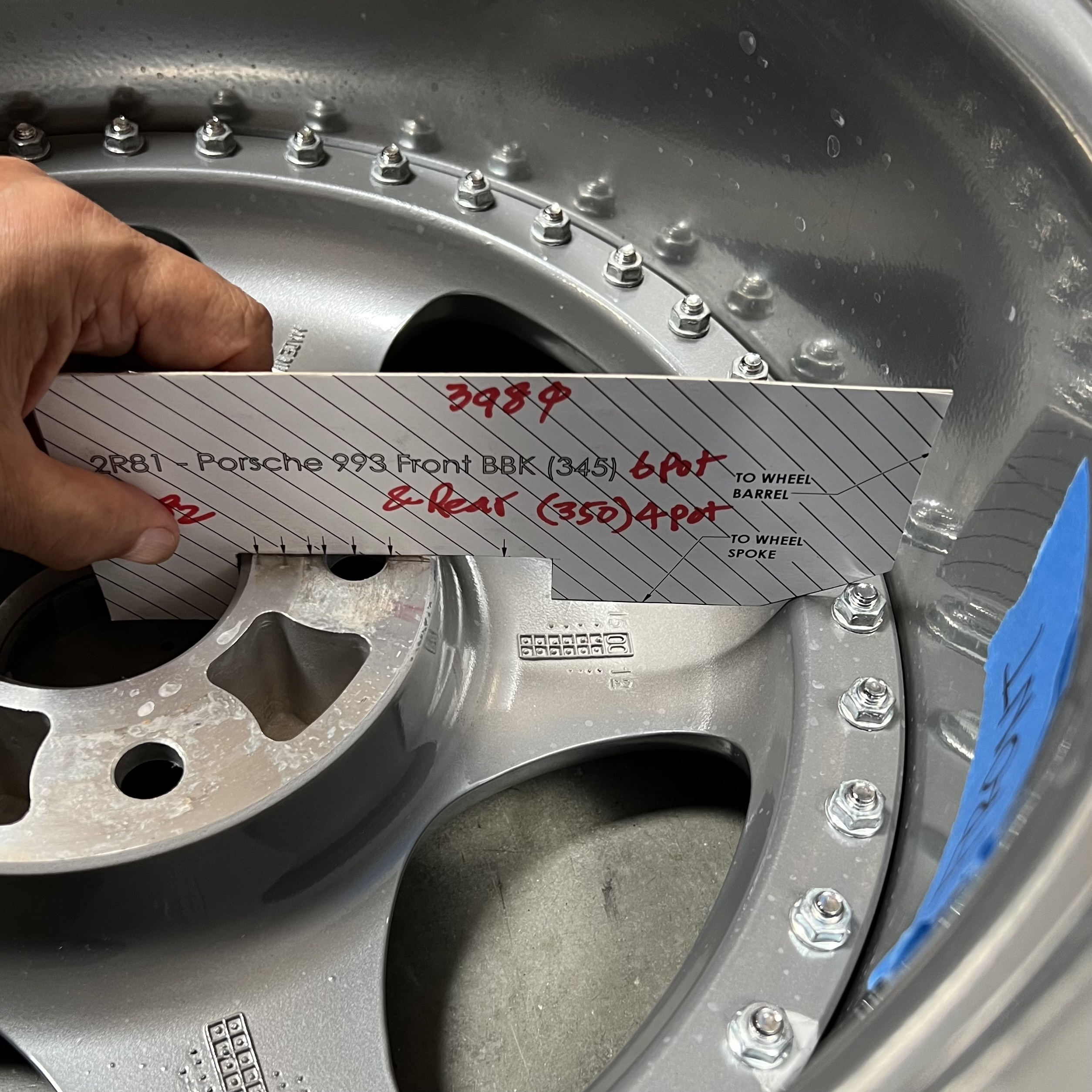

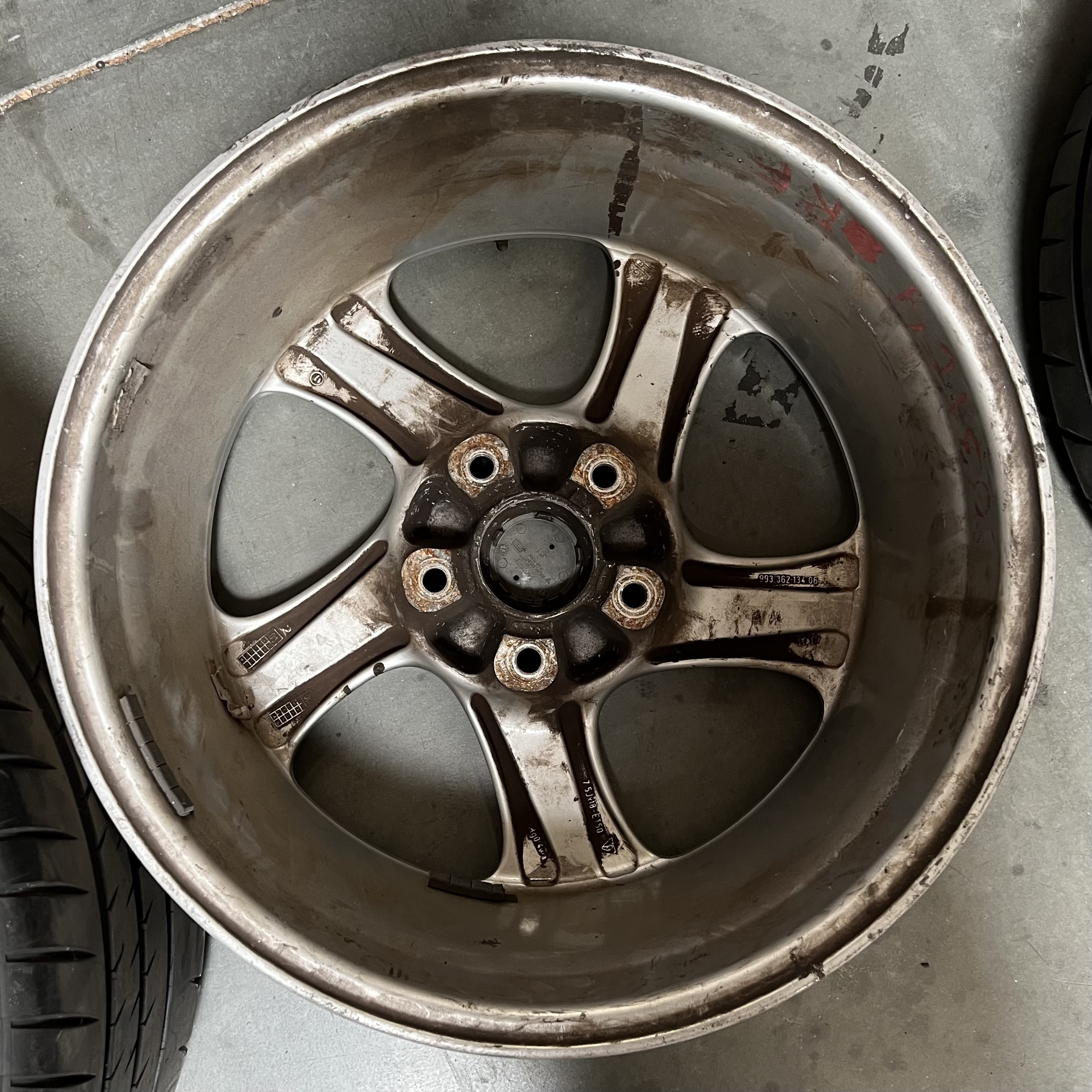

Aftermarket 18" - No wheel spacer (left); with 10-12mm spacer (right):
Download templates here.

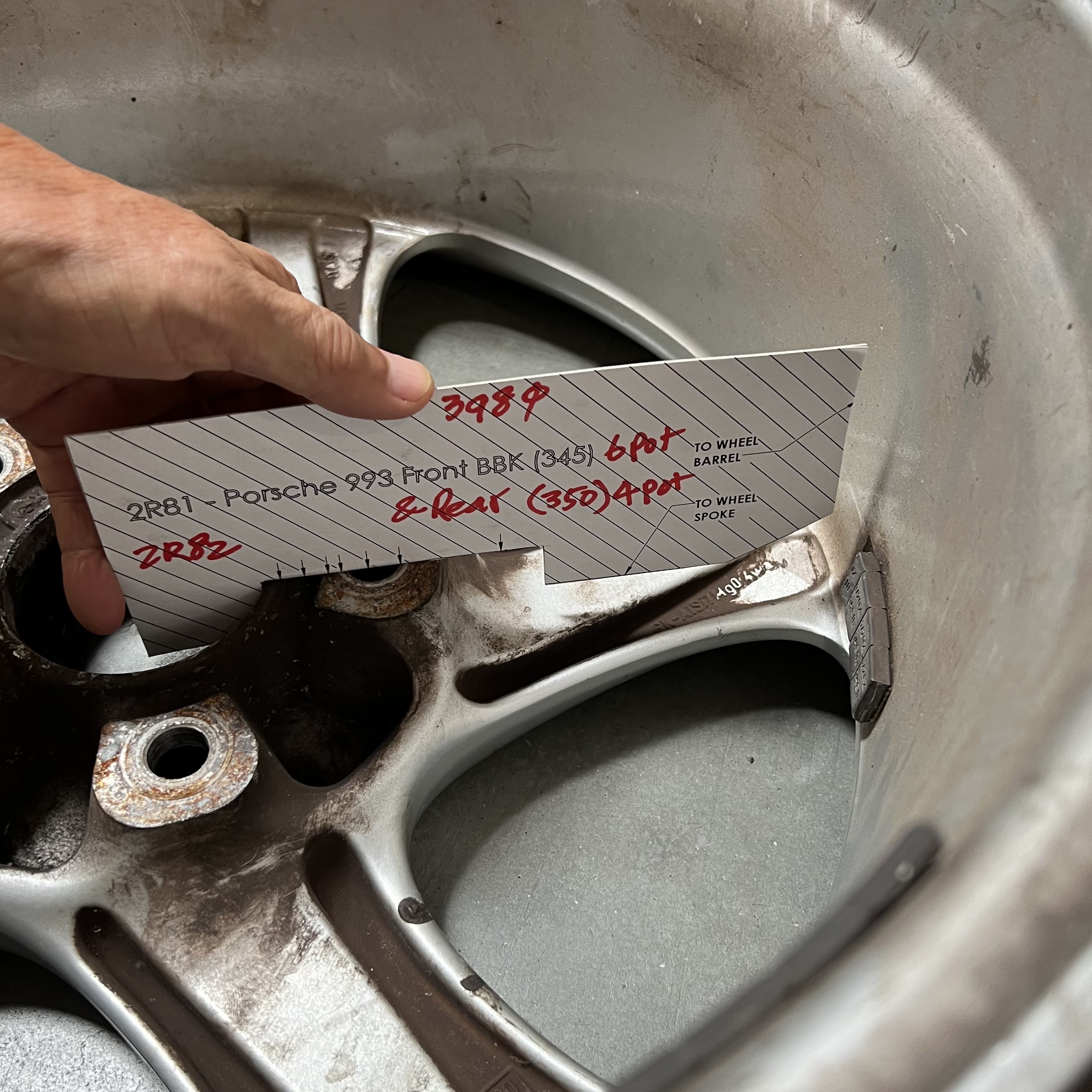

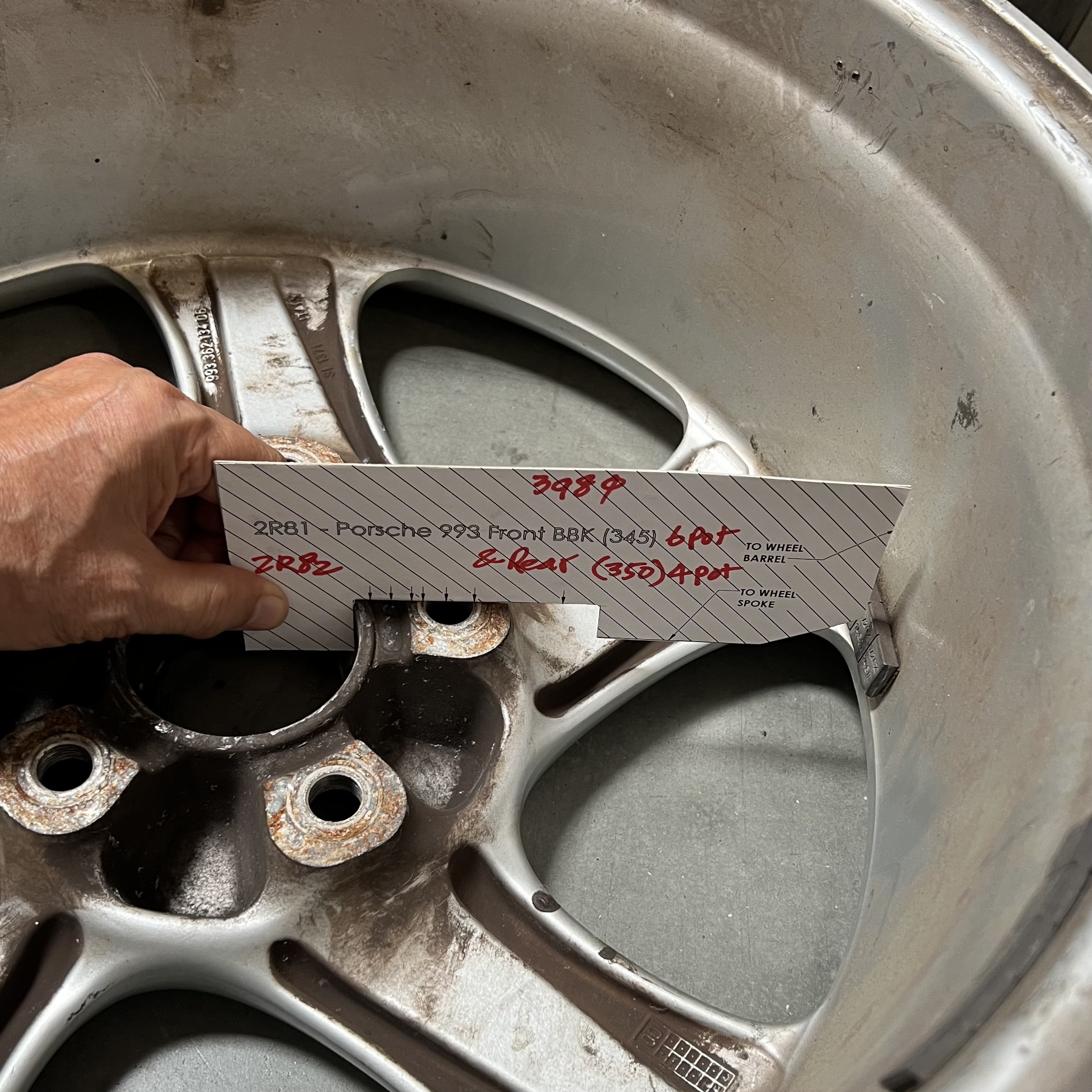

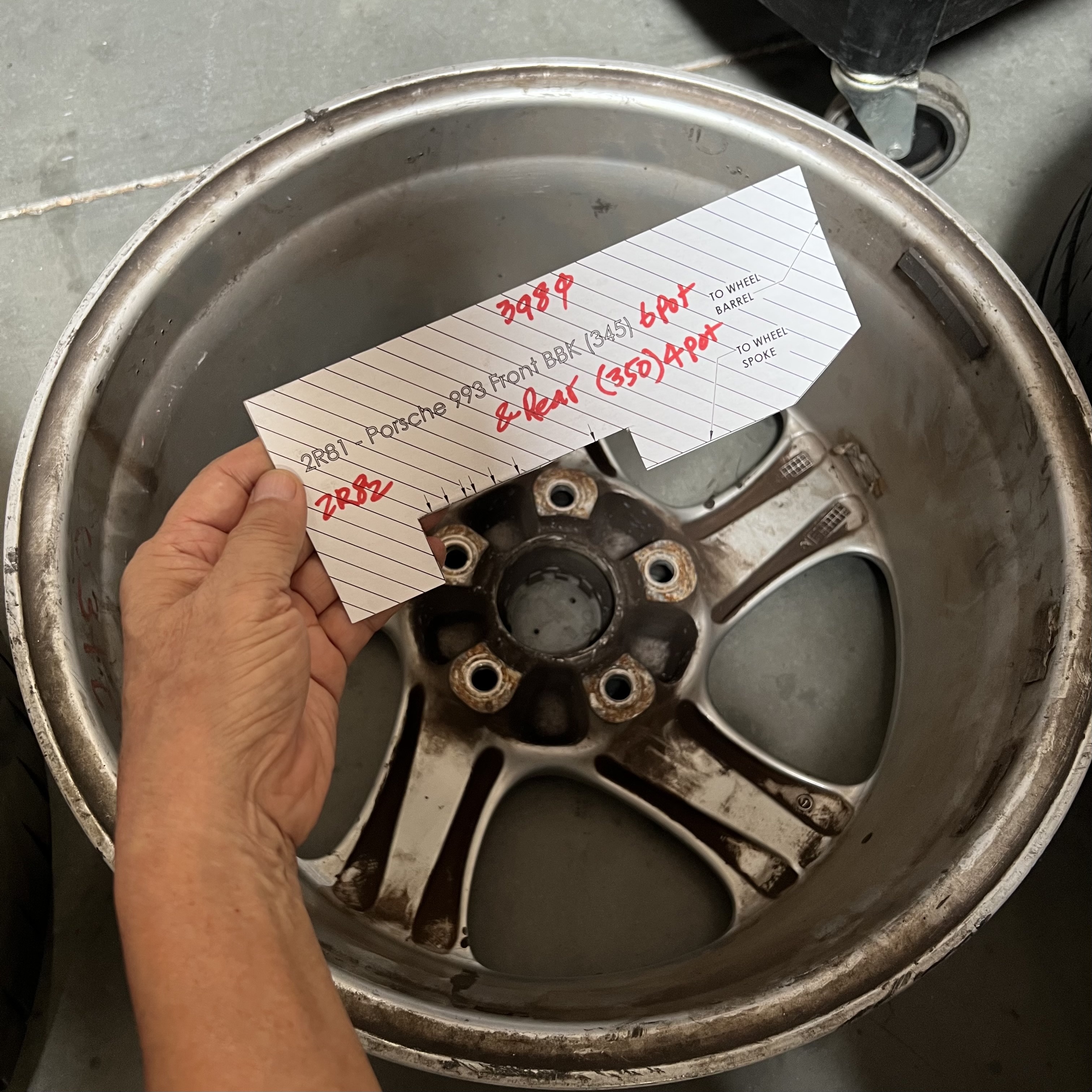

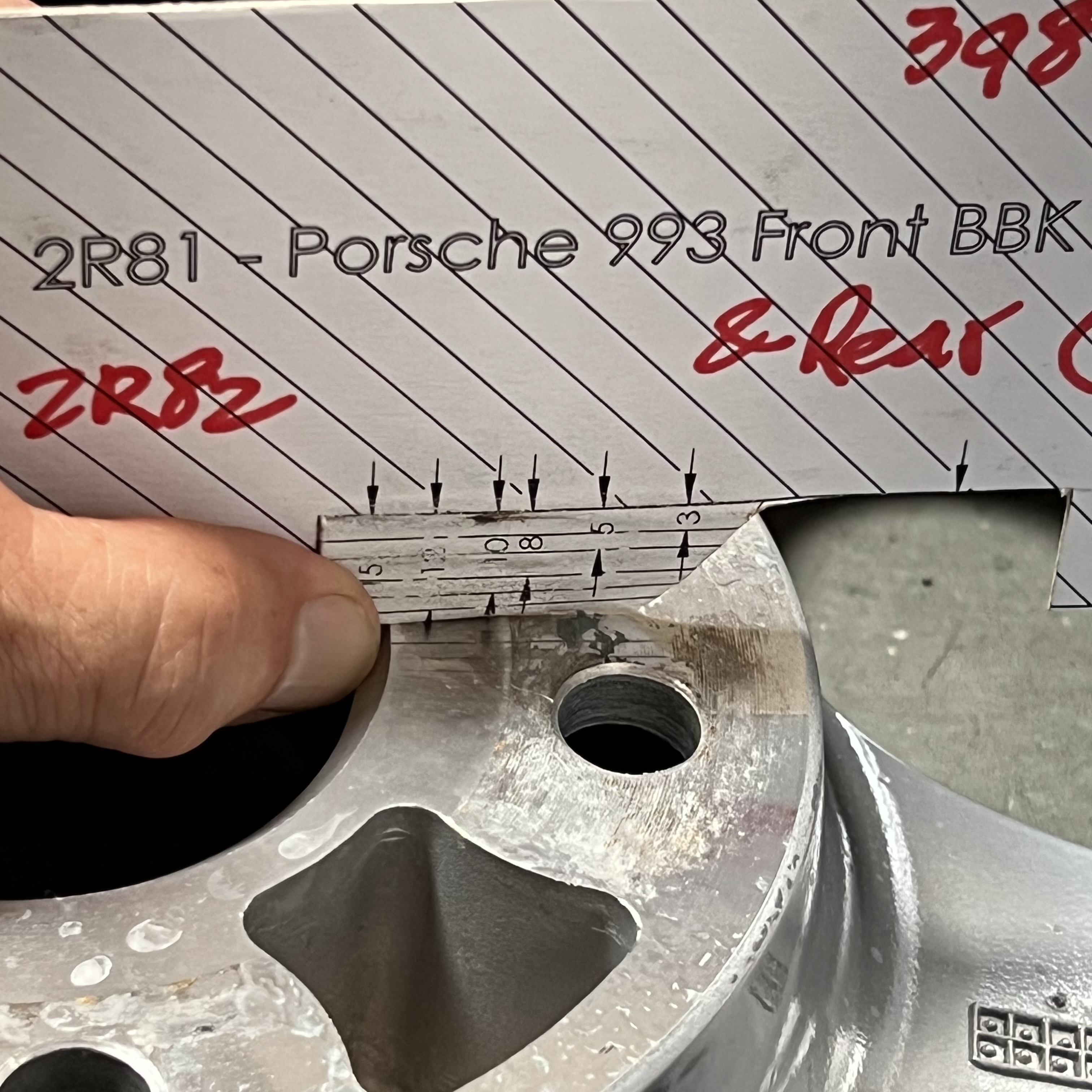

Wheel fitment templates:
Replacement rotor rings:
Replacement brake pads:
- Front: PD1666-360
- Rear: PD1165-360
Forum review:
https://rennlist.com/forums/993-forum/924547-carbon-ceramic-brake-kit-for-993-a.html
References upgrades:
- Front kit $8,709 (322x32): Big Red Sport Brake System 993 Front 4 Piston 322x32 mm OE Caliper+OE Discs
- Rear kit $6,303 (322x28): Big Red Sport Brake System 993 Rear 4 Piston 322x28 mm OE Caliper+OE Discs
