Product Description
Features and benefits:
-
- Rotor kits are exclusively developed for upgrading from OE iron rotors with a 100% direct bolt on installation.
- Discs are made of long carbon fibers and are directional, so they are stronger and can run cooler than
Brembo's chopped carbon fibers and straight vanes. - Rotors will fit under OE calipers w/o requiring any caliper or dust shiled modifications like other aftermarket kits made with Corvette ZR1 discs.
- Rotors (front & rear) are made with larger annulus to accomondate deeper pads (same as ZR1) that can help to run the brake cooler than OE size pads although also compatible with stock size pads.
- Rear rotor hats are made with iron sleeve insert and is 100% compatible with OE emergency brakes.
Kit includes:

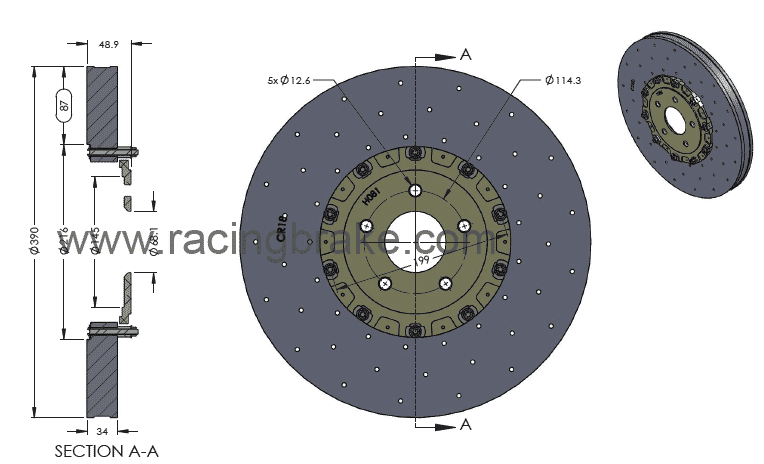

- 2 ea front CCM rotors (390x34mm) - No caliper modification is required
- 2 ea rear CCM rotors (380x30mm) - No dust shield trimming is required
- 1 set CCB RB ST600 brake pads (ZR1 size - Deeper than GTR OE pads)
Weight Saving:
| ROTOR WT. COMPARISON (LBS) | FRONT | REAR | TOTAL |
| OE | 28.6 | 27 | 55.6 |
| RB | 14.56 | 13.16 | 27.72 |
| Saving/Side | 14.04 | 13.84 | 27.88 |
| Saving/Car | 55.76 |
Replacement brake pads:
(ZR1 size pads are deeper than OE (13mm on front, 7mm on rear)
**Pagid/Endless pads are subject to availability.
Replacement rotor rings:
Rotor pricing references:
Compared to Surface Transforms:
