Shop by Brand
AUDI
| Model | Year | Front Caliper | Rear Caliper |
| E-Tron GT | 2019+ |
BA62 (34/38/38x29mm*) *30mm ht. supplied Brembo 6 pot (L=389mm, A=63.5 cm²)
|
|
| 6/7/8 Series (A/S/Q/RS) Rotor: 420mm (Iron)/440mm (CCB) |
C8 2019+ |
Akebono 10 pot (L=436mm, A=61.2 cm²)
|
N/A |
| 4/5 Series (A/S/Q/RS) Rotor: 350mm |
2018+ |

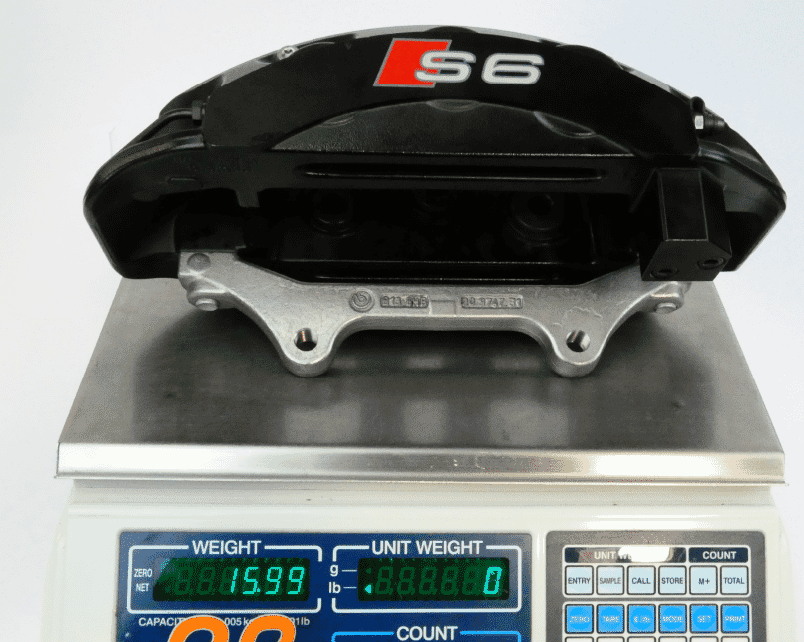

AA61 (30/36.4/38x31*) *30mm ht supplied Akebono red 6 pot (L=340mm, A=57.6 cm²)
|
N/A |
| 7/8 Series (A/S/Q) Rotor: 400mm |
2018+ |
AA62 (30/36.4/38x31*)=AA-61 *30mm ht supplied Akebono black 6 pot (L=390mm, A=57.6 cm²)
|
N/A |
| 7/8 Series (A/S/Q) | 2018+ |
AA63 (34.8/34.8/38x31*) *30mm ht supplied Akebono gray 6 pot (L=340mm, A=60.7 cm²)
|
N/A |
| RS6/RS7 CCB 6 pot (420x38mm CCB Rotor) |
2014-2017 |
Piston area=59.1 cm²
|
|
| RS3/5 8 Pot TTRS |
17-20 |
Brembo 8 pot (L=320mm, A=56.8 cm²)
|
N/A |

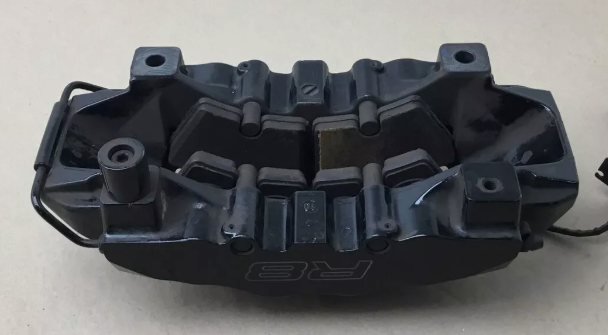

| R8 8 Pot | 08-12 |
Brembo 8 pot (L=320mm, A=56.8 cm²)
|
N/A |
| 6/7 Series (A/S/RS) | 13-18 |
Brembo 6 pot (L=360mm, A=56.9 cm²)
|
N/A |
| RS7 (Iron Rotor 389x36) |
Brembo 6 pot open top; Piston area=59.1 cm²
|
N/A | |
| Q5 | 13-18 |
Piston area=55.4 cm²
|
|
| TTRS 4 Pot | 12-13 |
Piston area=55.5 cm²
|
N/A |
