Product Description
Feature & benefit:
- Brake kit is specially designed for 993 rear engine with ~40/60% weight distribution.
- Calipers are selected to have 52/48% (w/rear bias).
- CCB brake pads are custom made by Pagid.
- Optimal overall system performance.
Kit includes:
- 2 ea Front ccb rotors 345x32mm (vs. OE 322x32)
- 2 ea Front caliper spacer kit (for oversized rotors)
- 2 ea Rear ccb rotors 350x28mm (vs. OE 322x28) OE parking/emergency drum brake compatible.
- 2 ea Rear caliper adaptors (AD215)
- 1 car set ccb brake pads (optional)
- 1 car set SS braided brake line kit
Installation note:
2 ea of the calipers are required (to be acquired by customers) to complete the installation.

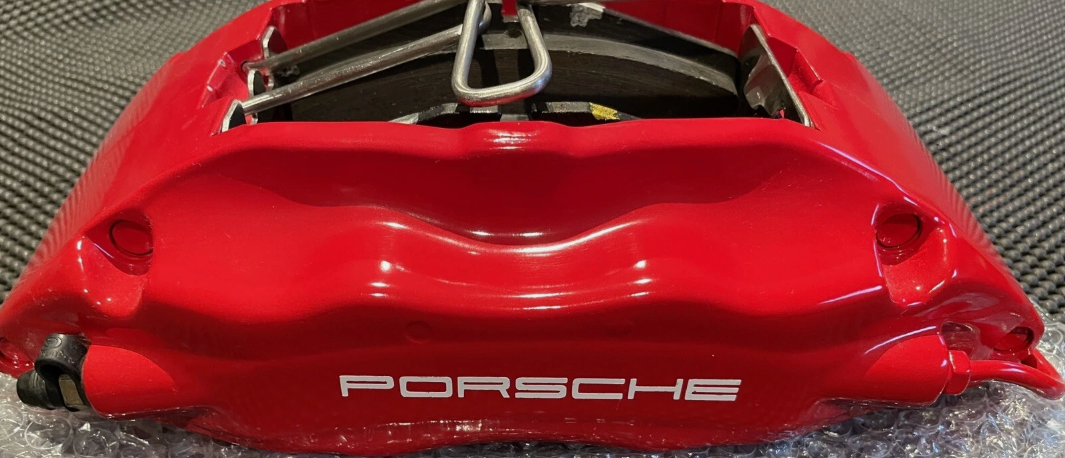

- Front 993 big red calipers (#BP-410, 99335242610, $1,030/ea)
- Piston size: 36/44mm
- Piston area: 50.77 cm^2
- Bias ratio: 58.3%

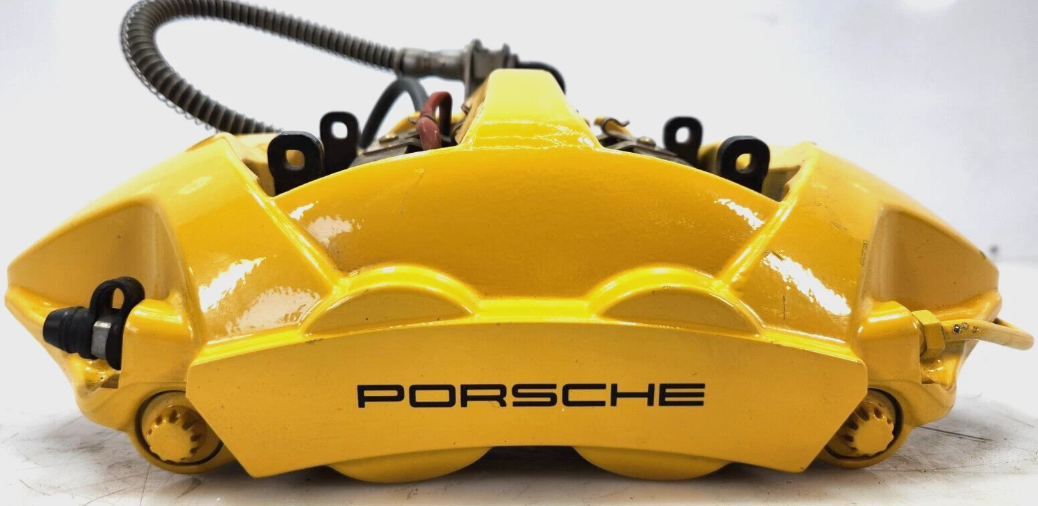

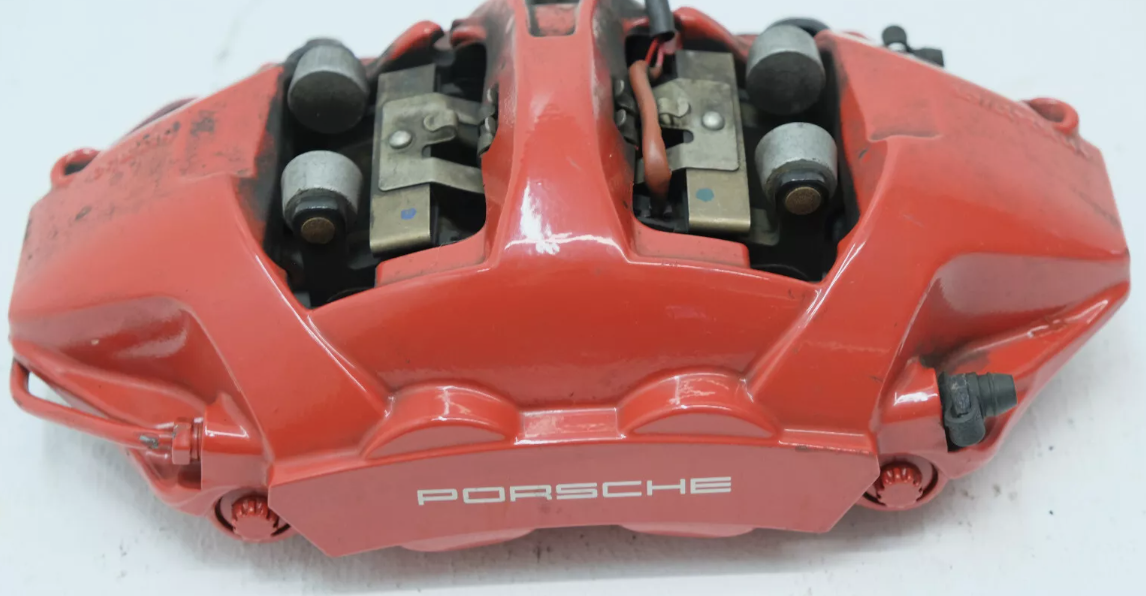

- Rear 991 GT3 rear calipers (#BP-417, 99135242785 $1,310 ea) - Either pccb (yellow) or iron (red)
- Piston size: 34/34mm
- Piston area: 36.32 cm^2
- Bias ratio: 41.7%
View here for the details on 993 caliper matrix.

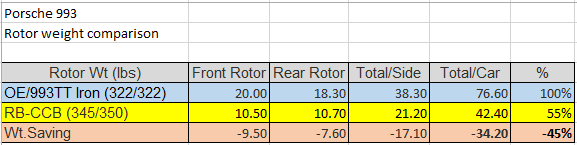

Rotor wt. comparison:

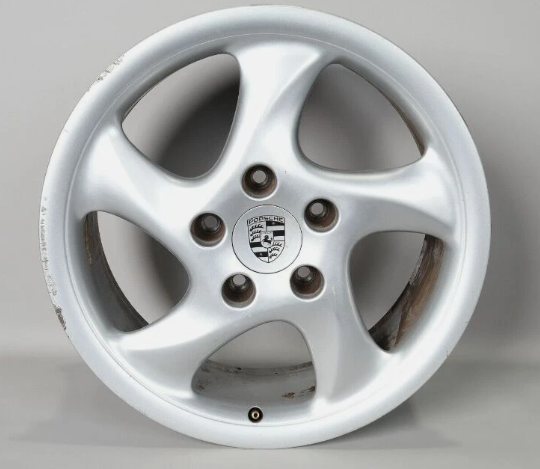

Wheel fitment: Fits stock 18" wheels
Replacement discs
- Front: CR39
- Rear: CR11
Replacement ccb pads:

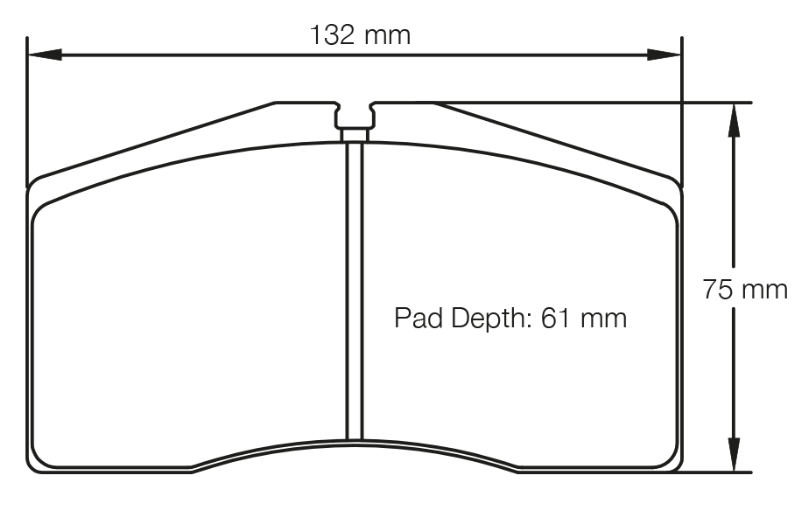

- Front: PD594/7473 (Pagid 1842)

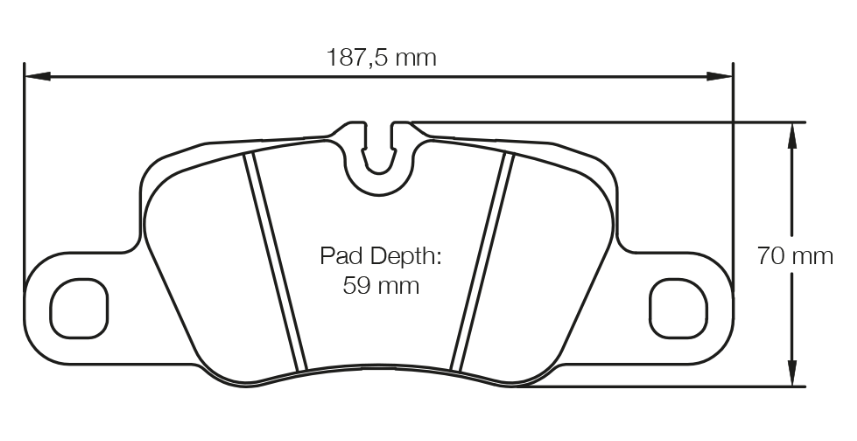

- Rear: PD1741/8964 (Pagid 4909)
References discussions/specs:
Brake kits:
